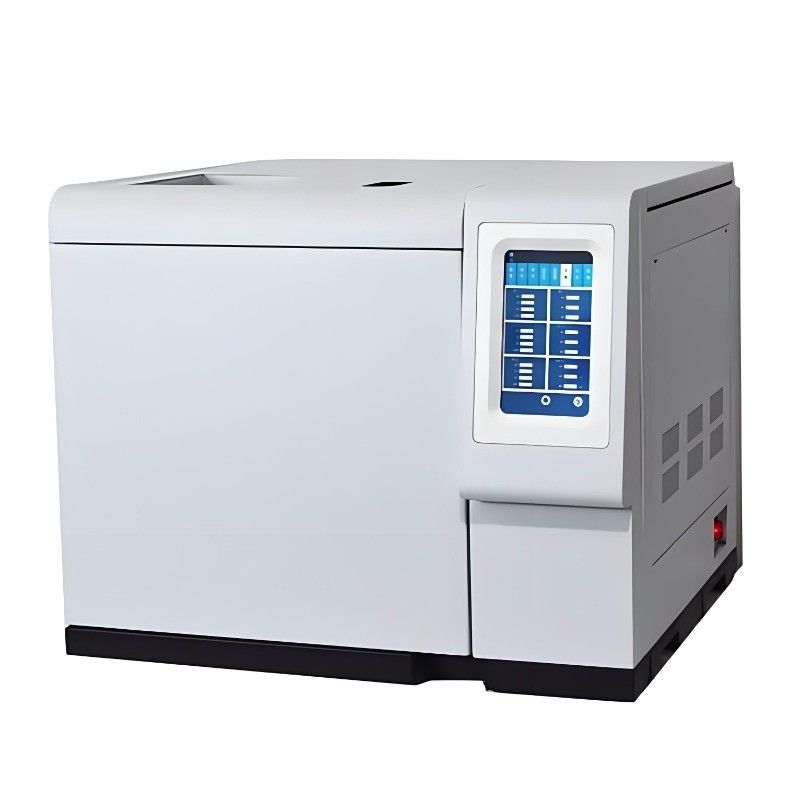

The GC900C series gas chromatograph is a microcomputer based, high-performance, and multi-purpose intelligent gas chromatograph designed and produced by our company to meet the requirements of a wide range of chromatographic users. Multiple detector combinations can be selected according to needs to meet the requirements of ordinary laboratories, daily production, conventional detection, as well as micro and trace analysis. It is widely used in various fields such as petroleum, chemical industry, pesticides, environmental protection, epidemic prevention, medicine, electricity, scientific research, and education.
Main performance characteristics:
1. Excellent column box performance, capable of achieving true near room temperature operation, capable of five step programmed heating, with automatic cooling of the column box and rear door opening function, fast cooling speed, and fast cooling.
2. It has six independent control areas: column box, capillary injector, packed column injector, detector, thermal conductivity cell, and auxiliary device.
3. The instrument is equipped with a dedicated capillary injection port and two filling column injection ports, which can simultaneously install two gas path systems: filling column and capillary column. It can meet the current requirements for the selection and analysis of various chromatographic columns in chromatographic analysis.
4. The instrument has a dual gas path, three samplers, and a dual packed column system structure, which can effectively suppress baseline fluctuations and drift in real time and is suitable for programmed temperature analysis.
5. The keyboard sets various control and usage parameters (including detector operation parameters), and the machine has functions such as self diagnosis, power-off protection, file storage and retrieval, and limit temperature setting. It can accurately display various temperature control settings, actual values, TCD bridge currents, FID amplifier sensitivity, retention and analysis time, etc.
6. Multiple detector combinations can be selected according to usage requirements, such as FID, TCD, FPD, ECD, NPD, etc.
7. Using an LCD display, the display content is rich, intuitive, and easy to operate.
8. Select domestic and foreign famous brand electrical components and carefully select them, combined with precise scale type pneumatic control valves, to ensure the reliability, stability, and high sensitivity of the instrument.
Main technical indicators:
Temperature control:
Temperature control range: 6 ℃ -400 ℃ above room temperature
Temperature control accuracy: soil 0.01 ℃
Number of temperature control channels: 5 channels (can be expanded to 6 channels)
Program heating order: 5th order
Rising rate: 0.1 ℃ -50 ℃/min
Time setting: 0-9999.9/min
Flame ionization detector (FID): (n-hexadecane)
Detection limit: Mt ≤ 5 × 10-12g/s
Baseline noise: ≤ 6 × 10-14A
Baseline drift: ≤ 6 × 10-13A/h
Linear range: ≥ 106
Thermal conductivity detector (TCD): (n-hexadecane)
Sensitivity: S ≥ 5000mv.ml/mg
Baseline noise: ≤ 20UV
Baseline drift: ≤ 30UV/h
Linear range: ≥ 104
Our Services
1. Ensure the high quality of the product.
2. Packaging can be done according to customer requirements and pictures can be attached before shipment.
3. Transport professional documents
4. Provide professional product consultation before sales, and we guarantee to answer any professional technical questions you may have within 48 hours; Provide timely product technical services after sales, and provide solutions within three working days.
5. Our engineers provide professional after-sales service
6. The warranty period is 12 months. During the warranty period, we are responsible for providing free maintenance, upkeep, and replacement of damaged and defective parts (under normal use) for the user's equipment. After the free warranty ends, service fees will be charged at your discretion.
7. Provide the fastest response to maintenance and assistance requests from users. After the user submits a maintenance request, ensure to provide professional technical support in the shortest possible time and in the fastest way possible.
