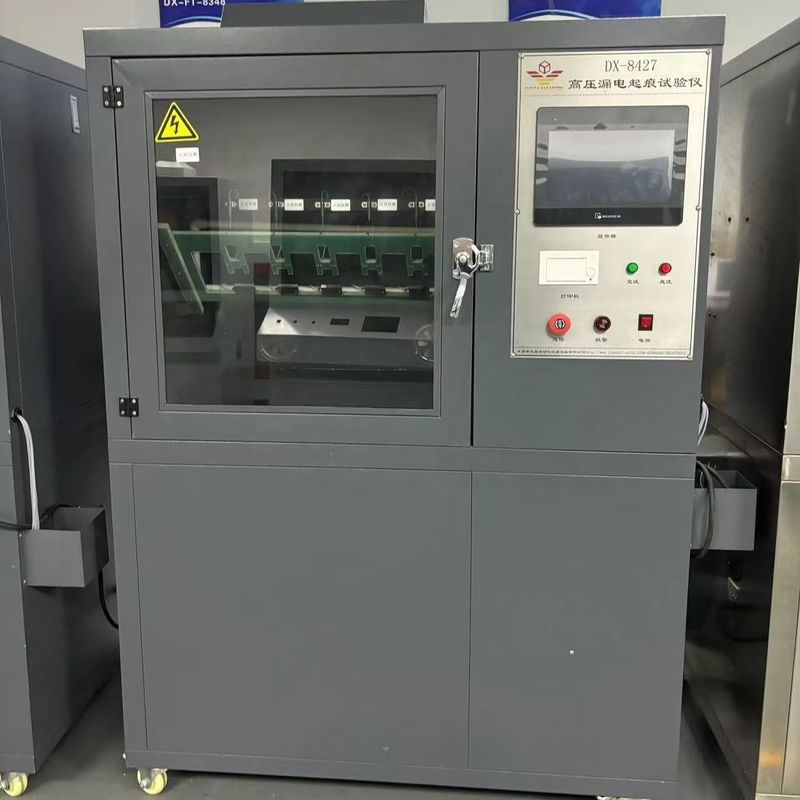

High Voltage Leakage Trace Testing Machine

Grote Afbeelding : High Voltage Leakage Trace Testing Machine

Productdetails: Betalen & Verzenden Algemene voorwaarden:

Prijs:	CN¥2,857.16/sets >=1 sets

Contact

High Voltage Leakage Trace Testing Machine

beschrijving

Garantie:	1-5Years	Op maat gemaakte ondersteuning:	OEM, ODM, OBM, Software het reengineering
Plaats van oorsprong:	Guangdong, China	brand name:	DAXIAN
Kracht:	6000 W	Spanning:	220V
Type:	Testmachine	Applicatie:	plastisch onderzoek, laboratoriumonderzoek
Beschermingsklasse:	IP67	Elektrode:	0.5 mm dik
Testtijd:	6-10 uren	capaciteit:	5KVA
Spanningsregelaar:	Verstelbaar van 0 tot 250 V	Druppelnauwkeurigheid:	00,5%
Voltagestabiliteit:	± 1%	Materiaal:	Roestvrij Staal
Uitgangsspanning:	AC/DC (schakelbaar)	Testspanning:	Stepless regelbaar van 100V-6000V
Afstand tussen elektroden:	50.0 mm ± 0.1
Markeren:	High voltage Leakage Trace Machine , High-voltage Leakage Testing Machine , Leakage Trace Testing Machine

Product Description

Company Profile

Dongguan Daxian Automation Instrument and Equipment Co., Ltd., founded on July 5, 2012, is located in Chang'an Town, Dongguan City, the Pearl River Delta, Guangdong Province, with developed transportation. It is a private enterprise engaged in the production, design, development and sales of test equipment and instruments. After years of development, the company has established a strong professional research and development team, committed to the research and development of test instruments and non-standard automation equipment.

Packing & Delivery

Selection of Packaging Materials： Selection of Packaging Materials 1. Use sturdy and durable packaging boxes to prevent equipment damage caused by collision or compression during transportation. 2. The interior is filled with shockproof materials, such as foam, air cushion or pearl cotton, to ensure that the equipment will not shake in the packaging box. 3. For fragile or sensitive components (such as electrodes, display screens, etc.), package and secure them separately to avoid damage during transportation.

Mode of Transport： 1. Prioritize choosing professional logistics and transportation companies to ensure safety and reliability during transportation. 2. For long-distance transportation, land or sea transportation should be used to avoid the potential impact of air pressure changes on equipment during air transportation.

Specification

Item	Value
Warranty	1-5Years
Customized support	OEM, ODM, OBM, Software reengineering
Place of Origin	China
	Guangdong
Brand Name	DAXIAN
Model Number	DX8427
Power	Electronic
Electrode	0.5mm thick
Material	Stainless steel
Distance between electrodes	50.0mm ± 0.1
Test voltage	100V-6000V stepless adjustable
Voltage regulator Output	Adjustable from 0~250V
Capacity	5KVA
Test time	6 hours
Dropping accuracy	0.5%
Voltage stability	± 1%

Control device: Adopting Siemens PLC+Taiwan Weinview touch screen control, precise control, simple operation, fully humanized
design, automatic report generation after the test, and panel thermal printer can print test results in a timely manner.

Number of test groups: Five groups (during the test, one pump controls one group of droplets, and the testing process does not affect each other, which is not commonly seen in the market as one pump controls five groups) (can be tested separately or together).

Dropping device: using a Ralph precision peristaltic pump, with a flow range of 0.00185-20
milliliters per minute, a working speed of 0.1-50 revolutions per minute, and a flow accuracy error of less than 0.5%.

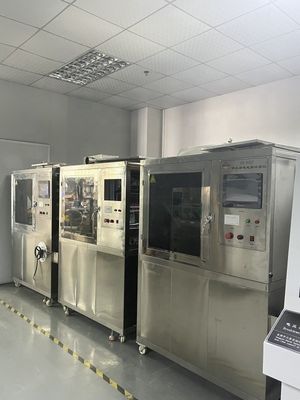

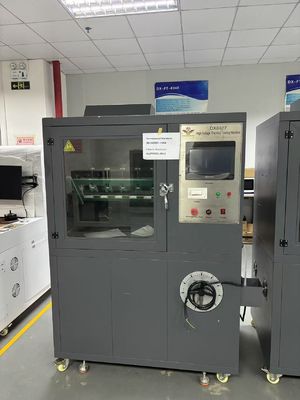

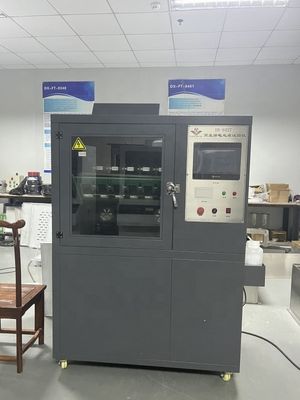

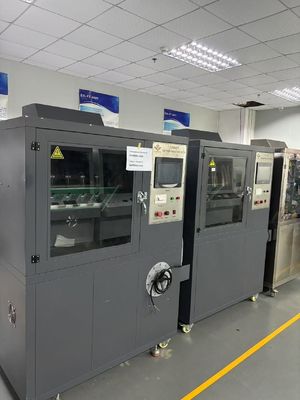

Customer Photos

After Service

1. Ensure the high quality of the product.

2. Packaging can be done according to customer requirements and pictures can be attached
before shipment.

3. Provide the fastest response to maintenance and assistance requests from users. After the user submits a maintenance request,ensure to provide professional technical support in the shortest possible time and in the fastest way possible.

4. Our engineers provide professional after-sales service.

5. The warranty period is 12 months. During the warranty period, we are responsible for providing free maintenance, upkeep, and replacement of damaged and defective parts (under normal use) for the user's equipment. After the free warranty ends, service fees will be charged at your discretion.

FAQ

1. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

2.what can you buy from us?
Fire Testing Equipment,Construction Materials Testing Equipment,Plastic Testing Equipment,Wire Testing Equipment,Environmental Test Chamber

3. why should you buy from us not from other suppliers?
Advanced technology research and development capabilities, high-quality product manufacturing and testing capabilities, rich industry experience and professional knowledge, as well as good customer relationships and reputation.

4.How about the payment term?
A: T/T, by cash, western union, or L/C.

5.What are the test methods for evaluating the resistance to electrical traces and corrosion of electrical insulation materials used under harsh environmental conditions？

Method 1: Constant voltage tracing method;

Method 2: Stepwise voltage tracing method.
