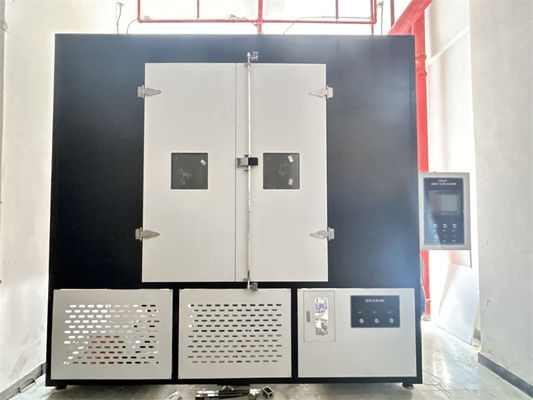

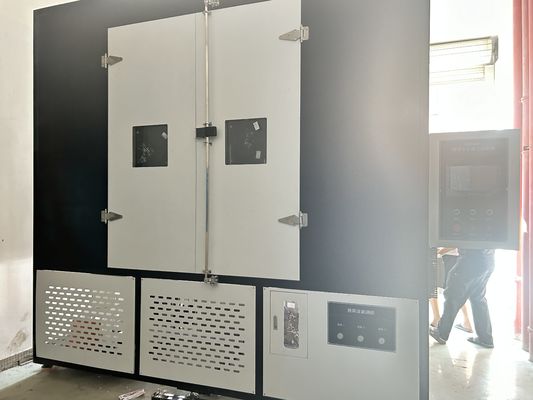

5000h Test Xenon Lamp Testing Device For Insulators

5000h Test Xenon Lamp Testing Device For Insulators
5000h Test Xenon Lamp Testing Device For Insulators
5000h Test Xenon Lamp Testing Device For Insulators 5000h Test Xenon Lamp Testing Device For Insulators 5000h Test Xenon Lamp Testing Device For Insulators 5000h Test Xenon Lamp Testing Device For Insulators

Grote Afbeelding :  5000h Test Xenon Lamp Testing Device For Insulators

Productdetails:
Plaats van herkomst: CHINA
Merknaam: DAXIAN
Certificering: ISO9001
Modelnummer: DX8428
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 1 set
Prijs: 7000USD
Verpakking Details: Houten behuizing
Levertijd: 30 werkdagen
Betalingscondities: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Levering vermogen: 3 sets per maand
Contact

5000h Test Xenon Lamp Testing Device For Insulators

beschrijving
Type: Isolatoren Testmachine Model: DX8428
Spanning: 380V brand name: DAXIAN
Sollicitatie: Het wordt voornamelijk gebruikt voor het multi -stress -testen van isolatoren. Garantie: 1 jaar
Aangepaste ondersteuning: OEM, ODM, OBM, software -re -engineering Plaats van herkomst: Guangdong, China
Gewicht: 2ton Dimensie (L*W*H): L3100* B3200* H3200mm
Markeren:

Xenon lamp insulator testing device

,

5000h xenon lamp tester

,

Insulation testing machine with xenon lamp

Company Profile
5000h Test Xenon Lamp Testing Device For Insulators 0
5000h Test Xenon Lamp Testing Device For Insulators 1
5000h Test Xenon Lamp Testing Device For Insulators 2
DAXIAN INTERNATIONAL EQUIPMENT CO., LTD is Located in Dongguan City, Guangdong Province, China, we are a high tech enterpris which is specialized in development and manufacturing, The most professional OEM manufacturer in the country,we mainly produce Fire Testing Equipment, Construction Materials Testing Equipment, Plastic Testing Equipment, Wire Testing Equipment, Environmental Test Chamber, Tensile Testing Machine, and others DAXIAN's testing equipment is widely used in various fields: scientific institutions, colleges, inspection institutions, auto parts, electronics, electronics, LEDs, photoelectricity, mobile, plastic rubber, telecommunications, chemical industry, aerospace, building materials and products, wire and cable, textile and fabric, etc
. All DAXIAN testing equipment is designed according to international test standards, such as ISO, ASTM, DIN, EN, GB, BS, JIS, UL, TAPPI, AATCC, IEC, VDE, CSA, CEN, and so on
Specification
Item
Value
Warranty
2 Year
Customized support
OEM, ODM, OBM, Software reengineering
Place of Origin
China

Guangdong
Brand Name
DAXIAN
Voltage
380V
Power
Electronic
External dimensions
L310*W320*H360CM
2TonWeight
260G
Power
2KW
Standard
IEC62730:2024, GBT22079, IEC62217-2012
Protection Class
ip65
Product name:
Technical Specifications for the 5000 - hour Multiple Stress Test Setup in accordance with IEC 62730:2024.

Test Conditions:
The cycle of stresses applied to the insulators and repeated for a period of 5 000 h is shown in Figure 3. The cycle is designed
so that the test specimens are also subjected to the effects of temperature variation and condensation .

Artificial Rain:
The artificial rain shall be provided by nozzles mounted above the test specimens and outside their perimeter (see Figure 4 ). The
average precipitation rate shall be in accordance with IEC 60060-1 . Water of a minimum resistivity of 85 nm shall be used. Each
of the test specimens is sprayed individually.

Salt fog calibration:
The calibration will be carried out before the start of the test.
At least two clean collecting receptacles with a collecting area of 8 000 mm2 ± 2 000 mm2 and a maximum height of 100 mm each are placed as close as practical to the position of the ends of the test object. The receptacles are positioned in such a way that they are not shielded by the test specimens and to avoid dripping from the construction elements of the chamber or another source.
They should collect between 1,5 ml and 2,0 ml of precipitation per hour (corrected to 8000 mm2 collecting area) averaged over a minimum period of 16 h.
NOTE The flow rate necessary to obtain such precipita tion (typically of the order of 0,3 l/m3h based on a chamber not larger than(15 m3) should be noted. (The water flow rate is defined in l itres per hou r and per cubic meler of the test chambe r volume. )
Subsequently du ri ng the test, the flow rate should be checked at least every 100 h and should remain within ± 25 % of the initial value.
it is not permitted to re-circulate the water.

General conditions:
1- Training will be provided on the maintenance and use of the device
2- After the installation is completed, the device will operate without any problems for 1 month (4 weeks) for acceptance.
3- Electrical diagram and water pipe connection system diagrams will be provided
4- Maintenance manual will be provided
5- User manual will be provided
6- Parts in contact with salt fog and rain will be stainless
7- Electrical components will be suitable for 380V infrastructure
8- Warranty conditions will be specified
9- Spare parts will be provided for 10 years
10- Consumables list will be provided


Customer Photos

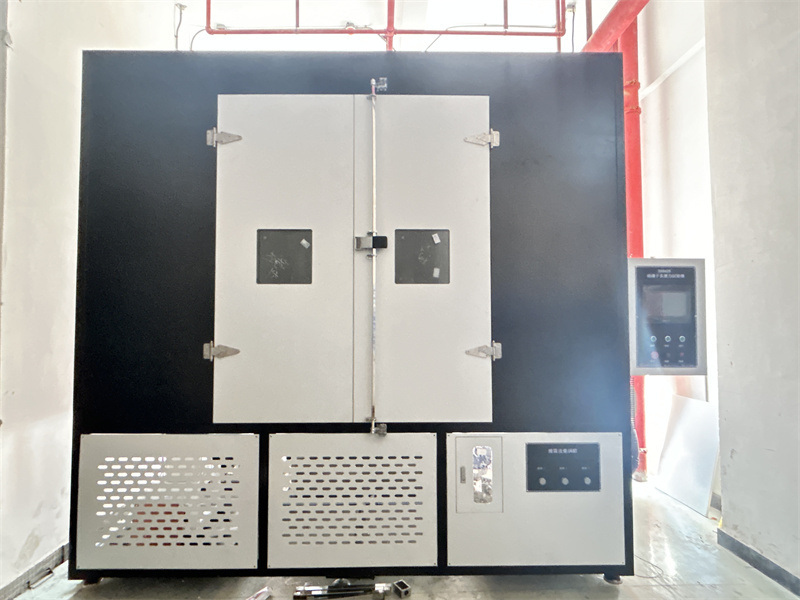

5000h Test Xenon Lamp Testing Device For Insulators 3

Packing & Delivery
5000h Test Xenon Lamp Testing Device For Insulators 4
5000h Test Xenon Lamp Testing Device For Insulators 5
Exhibition
5000h Test Xenon Lamp Testing Device For Insulators 6
5000h Test Xenon Lamp Testing Device For Insulators 7
FAQ
Q:Are you factory or trading company?
A:We are factory in Dongguan City, Guangdong Province,China.Near Shenzhen or Guangzhou.

Q:What kind of certificate you have?
A:ISO9001 Certification, CE Certification.

Q:What is the lead time of the product?
A: Generally 7-15 days after getting the deposit.

Q:How about the payment term?
A: T/T, by cash, western union, or L/C.

Q:How about the warranty term?
A:1 year warranty,The engineer can teach the machine on the spot.

Q:. Why should you buy from us not from other suppliers?
A:Advanced technology research and development capabilities, high-quality product manufacturing and testing capabilities, rich
industry experience and professional knowledge, as well as good customer relationships and reputation.
